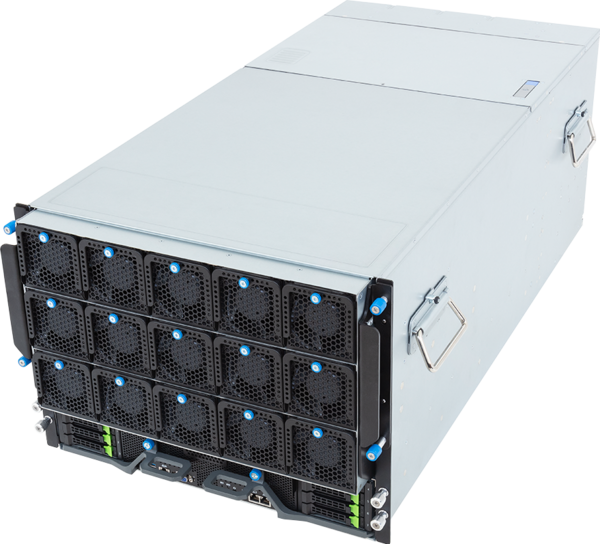

GIGABYTE G893-ZX1-AAX4
HPC/AI Server - AMD EPYC™ 9005/9004 - 8U DP AMD Instinct™ MI355X
- · 8 x AMD Instinct™ MI355X OAM GPUs
- · Dual AMD EPYC™ 9005/9004 Series Processors
- · 12-Channel DDR5 RDIMM, 24 x DIMMs
- · Compatible with AMD Pensando™ Pollara 400 AI NIC
- · 2 x 10Gb/s LAN ports via Intel® X710-AT2
- · 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
- · 8 x 2.5" Gen5 NVMe hot-swap bays
- · 4 x FHHL dual-slot PCIe Gen5 x16 slots
- · 8 x FHHL single-slot PCIe Gen5 x16 slots
- · 6+6 3000W 80 PLUS Titanium redundant power supplies
New AMD EPYC™ Family of Processors - Same Great SP5 Platform
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.

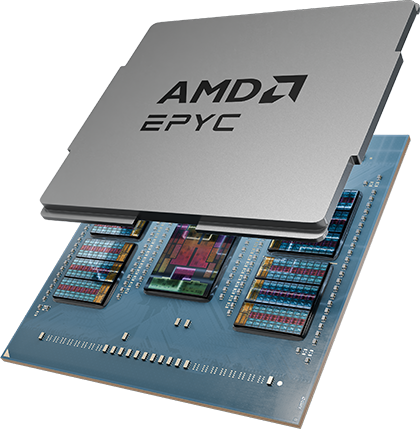

5th Generation AMD EPYC™ Processors for SP5 Socket
-
3nm
architectureIncreased transistor density alongside a reduction in power consumption
-
Up to 192
CPU coresDedicated “Zen 5” & “Zen 5c” cores increase compute density
-
Up to 512MB
L3 cacheAn L3 cache increase helps to reduce latency in data-intensive operations
-
12
channelsMemory capacity up to 9TB in a 2 DIMM per channel configuration
-
Up to 160
PCIe lanesDual socket configuration adds a significant amount of I/O connectivity
-
CXL 2.0
supportDisaggregated compute architecture possible via Compute Express Link
- • AMD EPYC™ 9005 Series processors require OEM enablement and a BIOS update from your server or motherboard manufacturer if used with a motherboard designed for the SP5 socketed AMD EPYC™ 9004 Series processors. Contact your system manufacturer prior to purchase to determine compatibility.
- • CXL Type 1&2 devices and PCIe link encryption support dependent upon ecosystem readiness; type 2 PoC only.
- • CXL peripheral support varies by product. Please refer to the QVL list for validated configurations.
Select GIGABYTE for the AMD EPYC™ 9005 Platform
-
High Performance
Servers and motherboards by GIGABYTE are tested to ensure peak performance for demanding workloads while supporting the latest GPU and CXL technology.
-
Compute Density
With 192 CPU cores per socket, GIGABYTE's 4-node servers support up to 1,536 CPU cores, allowing a far greater number of concurrent tasks to be done.
-
Fast & Stable Connectivity
Keeping pace with the challenges for next gen technology, well designed GIGABYTE boards provide users the signal integrity for fast PCIe 5.0 speeds.
-
Collaboration
AMD and GIGABYTE have maintained a healthy relationship that values shared knowledge and open communication in order to launch products in tandem.
-
Optimal Price
Our broad portfolio of products tailored to applications allow customers to only select server features they require while doing so at a lower TCO.

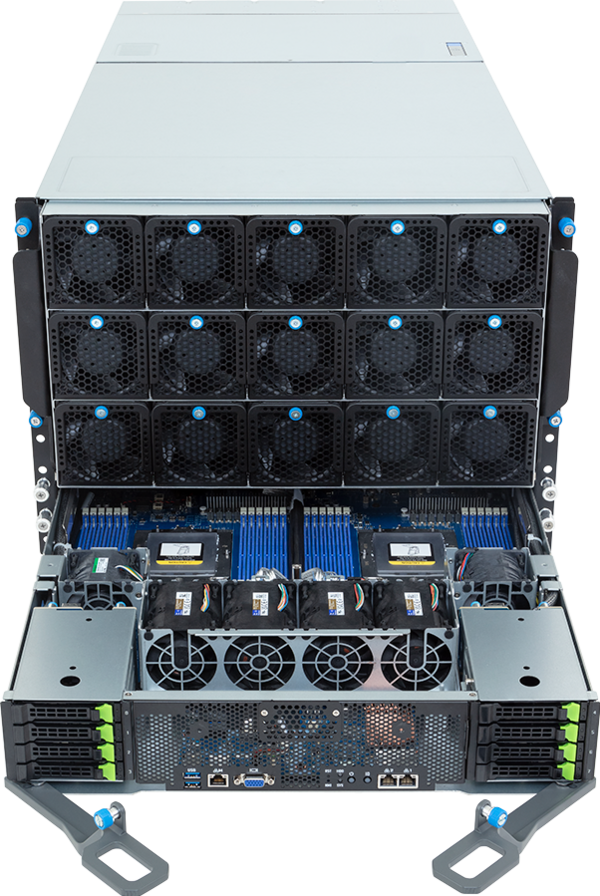

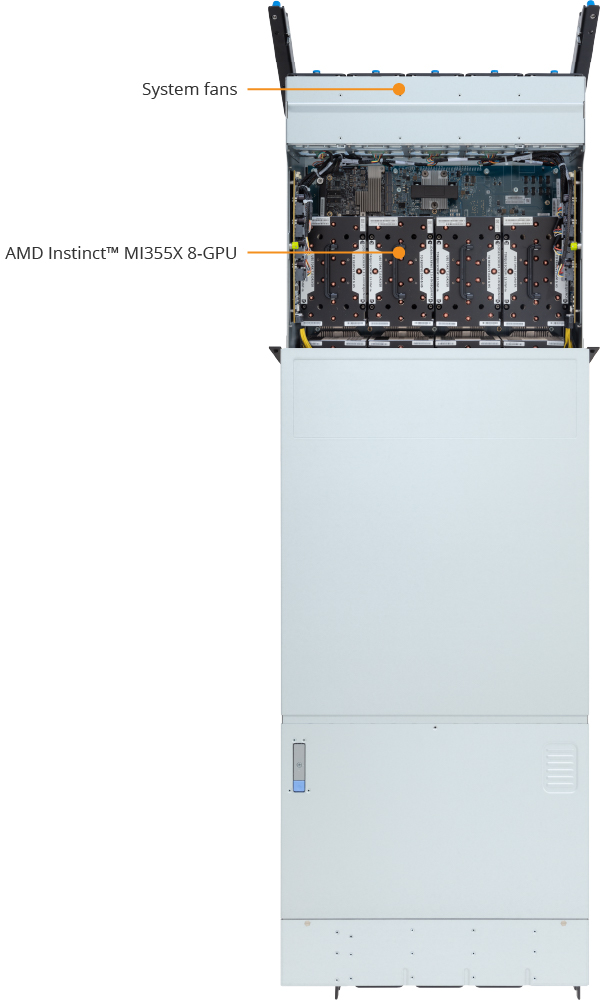

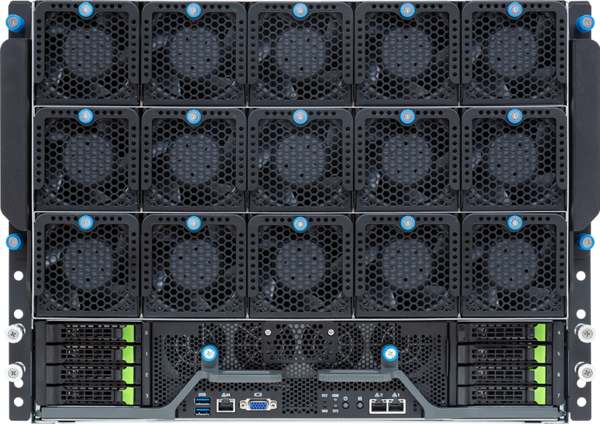

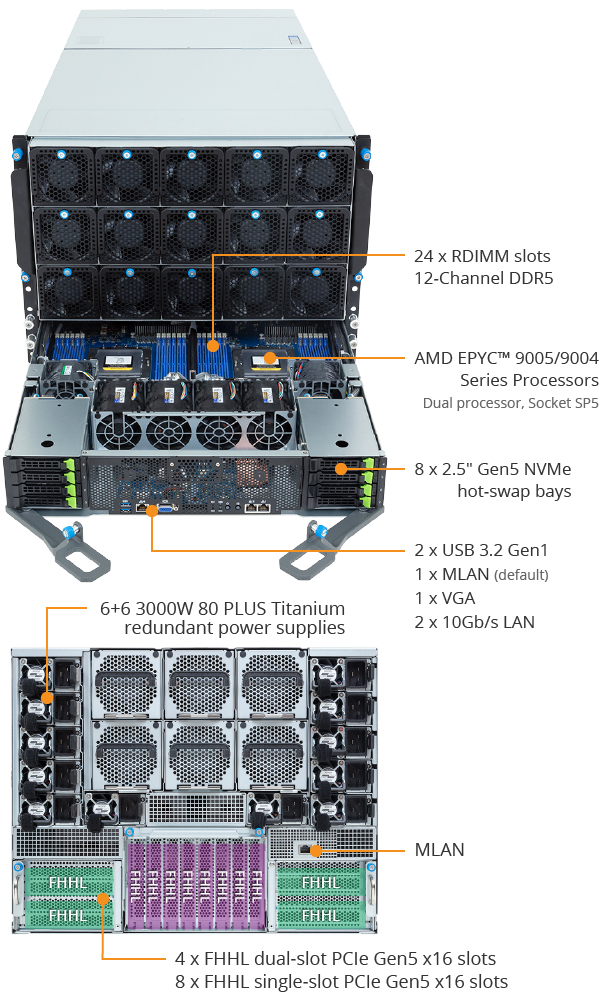

G893-ZX1-AAX4 Product Overview

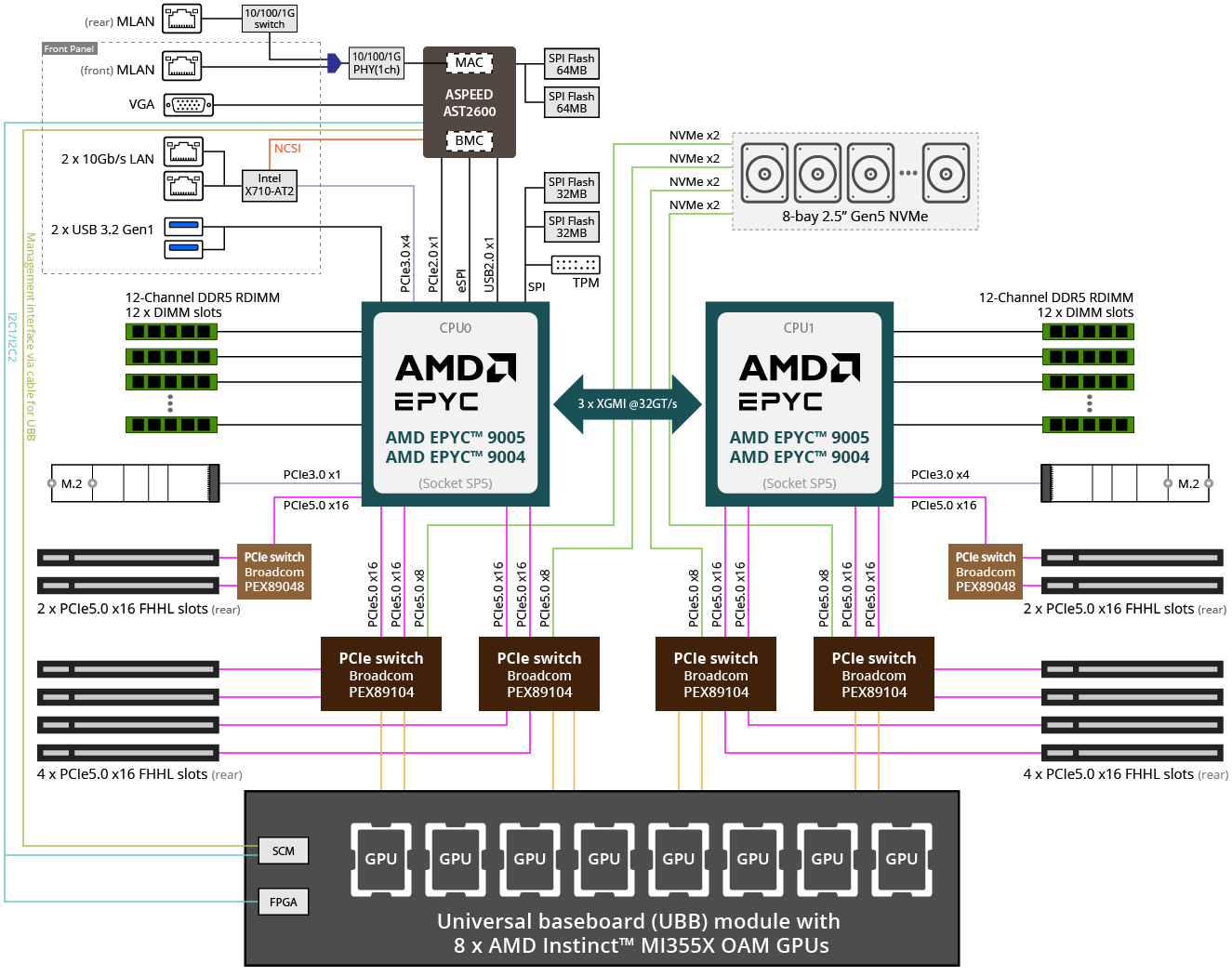

G893-ZX1-AAX4 Block Diagram
-
High Performance

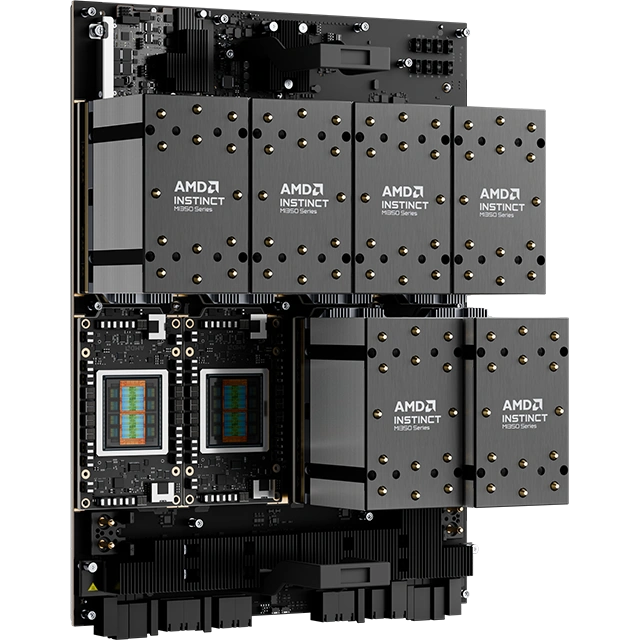

Supports AMD Instinct™ MI350 Series GPUs
Built on the cutting-edge 4th Gen AMD CDNA™ architecture, the AMD Instinct™ MI350 Series Platforms feature eight GPUs with powerful, energy-efficient cores that maximize performance per watt to drive the next era of AI and HPC innovation. With exceptional efficiency, performance, and memory capacity, the platforms excel at high-speed inference, training massive AI models, and tackling the most complex computational challenges—from scientific simulations to large-scale data processing and advanced modeling.
-
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
-
Power Efficiency

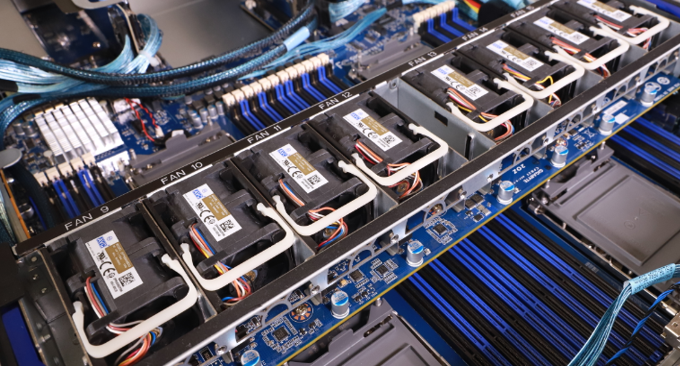

Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
User Friendly
-

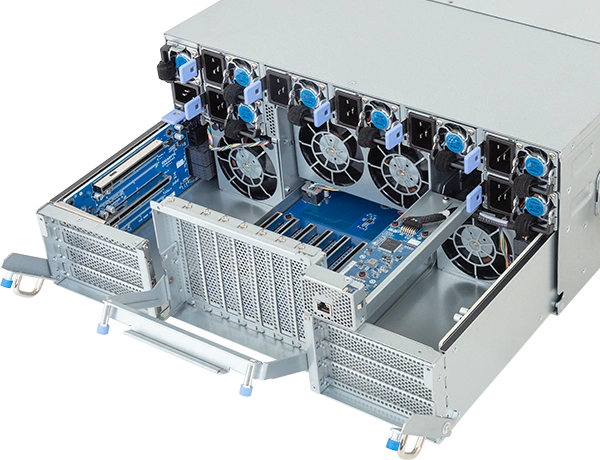

Full-Height Add-In Cards
Support full-height add-in cards on all PCIe expansion slots to accommodate DPUs and SuperNICs.
-

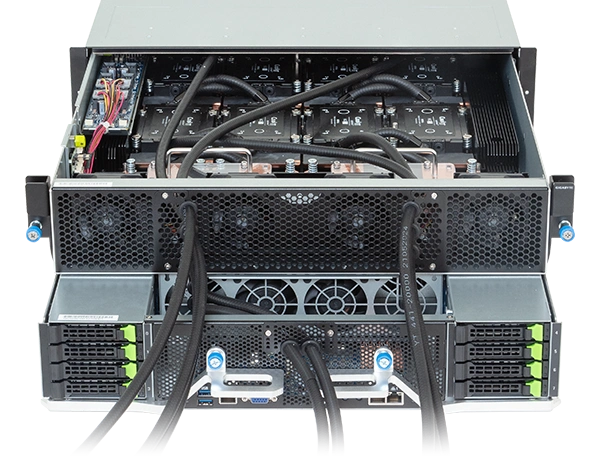

Easy Maintenance

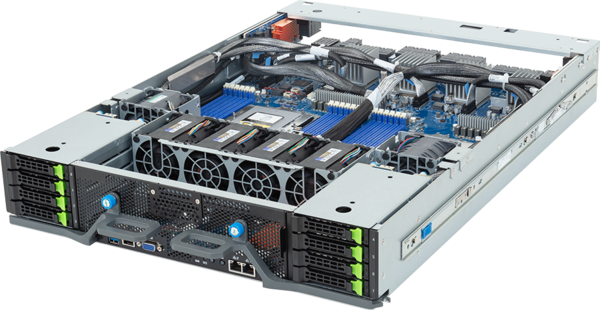

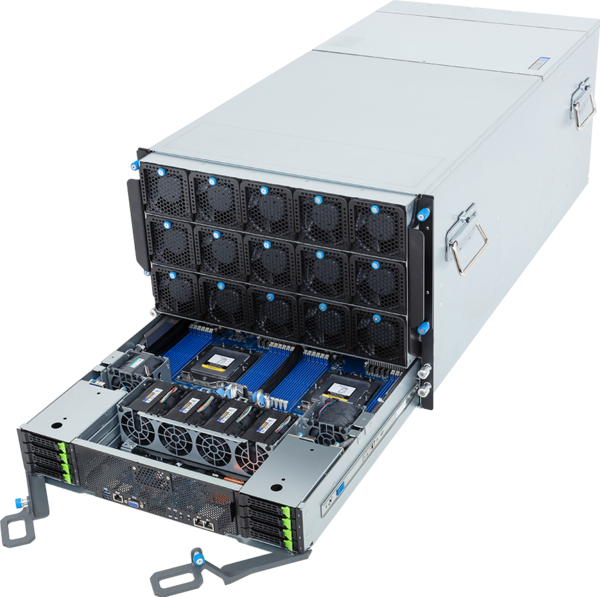

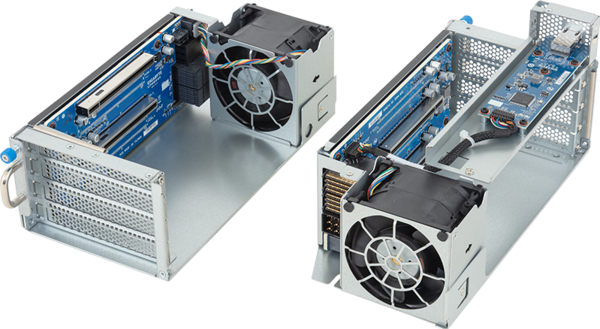

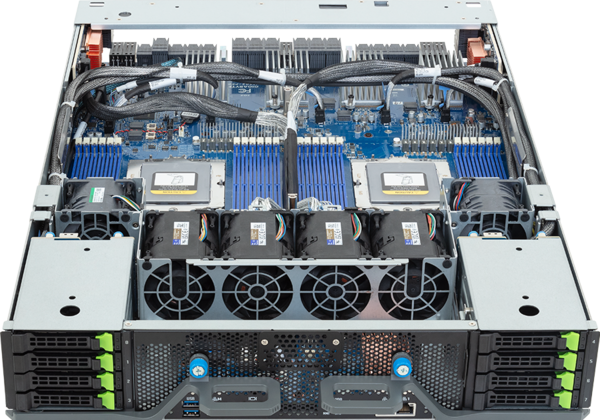

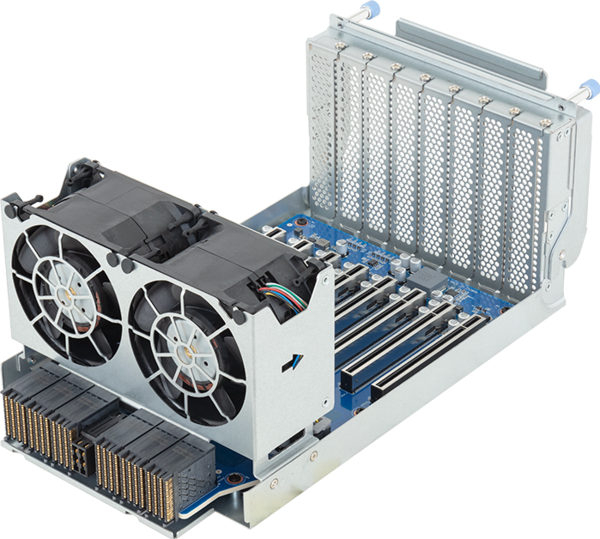

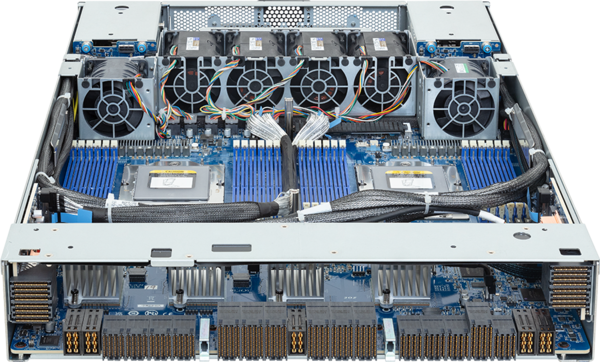

PCIe cage design and front-access motherboard/GPU trays for streamlined maintenance.
-

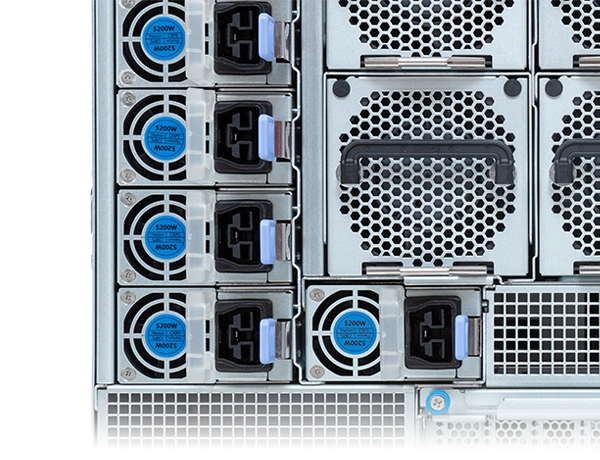

Flexible PSU Configuration
Hot-swappable, fully redundant PSUs with multiple connector options for enhanced flexibility.
-

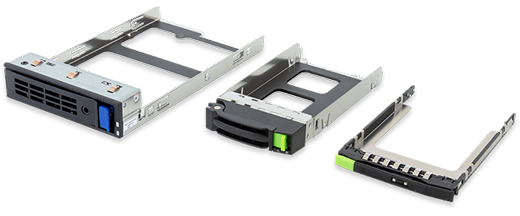

Tool-less Drive Bays Design
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
-
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.
-
High Availability
Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
-

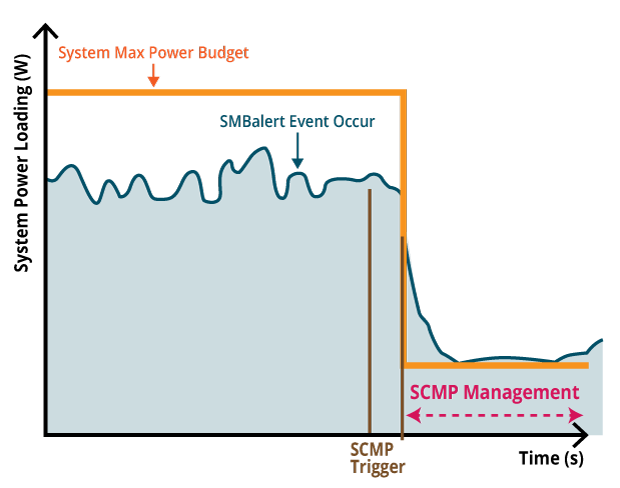

Smart Crises Management and Protection (SCMP)
SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.
-
Dual ROM Architecture
If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

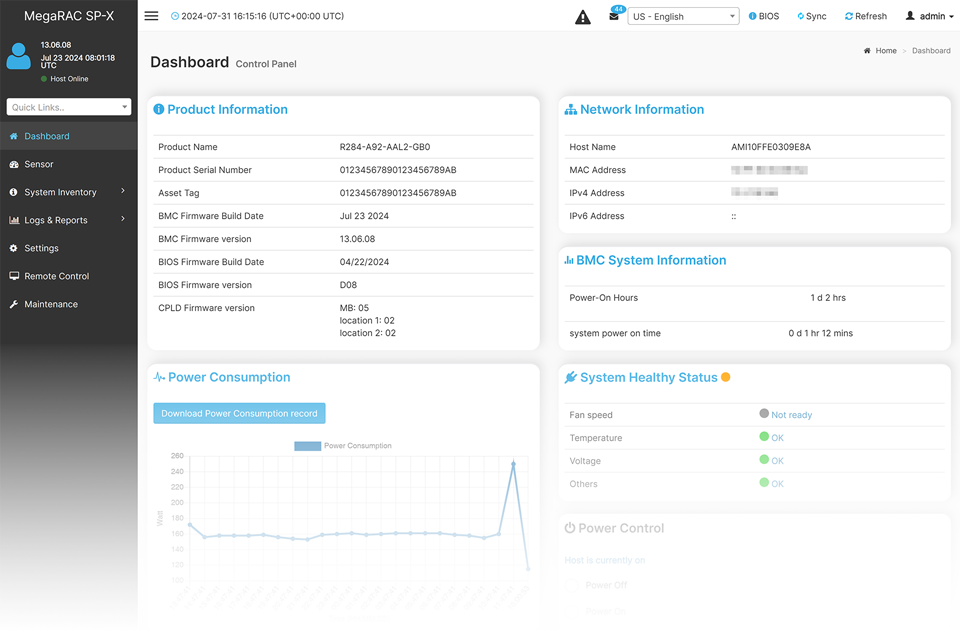

GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- ✔Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- ✔Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- ✔Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

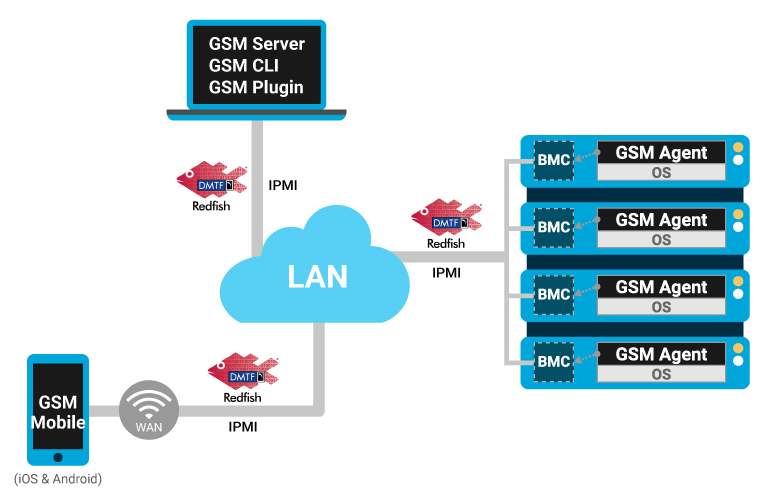

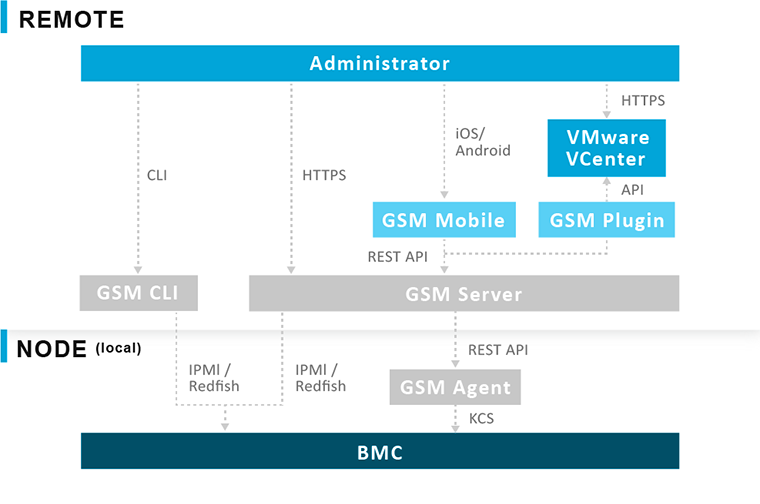

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- ✔GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- ✔GSM CLI: A command-line interface for monitoring and managing remotely.
- ✔GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- ✔GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- ✔GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
- [#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
- [#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
- [#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
- [#4] All trademarks and logos are the property of their respective owners.
Specifications
-
Dimensions (WxHxD, mm)
8U
447 x 351 x 923 -

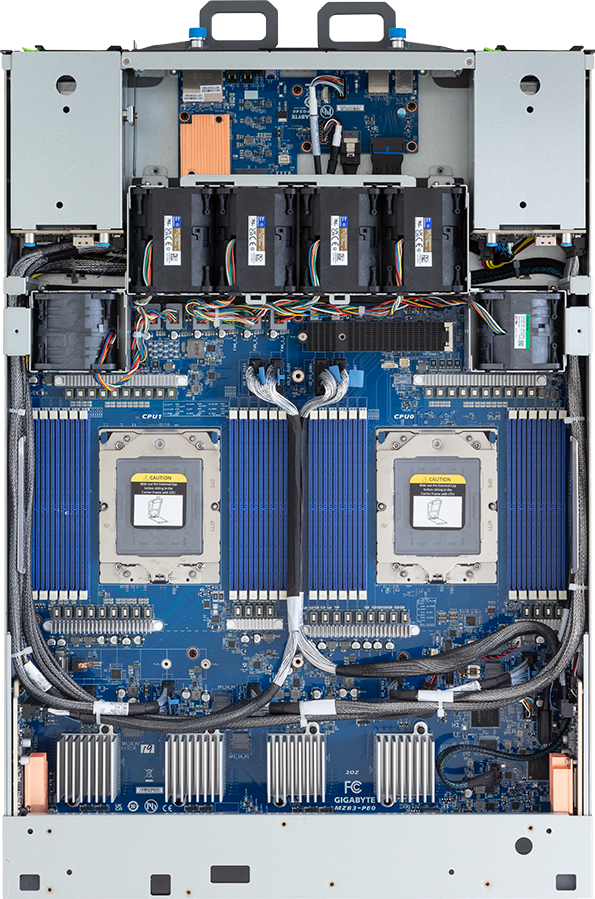

Motherboard
MZB3-PE0 -
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 500W[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. -
Socket
2 x LGA 6096
Socket SP5 -
Chipset
System on Chip -
Memory
24 x DIMM slots
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s -
LAN
Front (I/O board - CFPG540):
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default. -
Video
Integrated in ASPEED® AST2600
- 1 x VGA port -
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe
- (NVMe from PEX89104)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0 -
SAS
N/A
-
RAID
N/A -
Modular GPU
8 x AMD Instinct™ MI355X OAM GPUs -
PCIe Expansion Slots
PCIe Bridge Board - CBG76:
- 8 x FHHL x16 (Gen5 x16), single-slot, from PEX89104
PCIe Bridge Board - CPBG045 x 2:
- 4 x FHHL x16 (Gen5 x16), dual-slot, from PEX89048 -
Front I/O
I/O board - CFPG540:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED -
Rear I/O
MLAN board - CDB66:
1 x MLAN port -
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 -
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012 -
Power Supply [#1]
6+6 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A[1] The system power supply requires C19 power cord.
-
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings -
OS Compatibility
Please refer to OS compatibility table in support page -
System Fans
Motherboard:
2 x 60x60x56mm
4 x 60x60x76mm
PCIe slots:
4 x 80x80x56mm
GPU tray:
15 x 80x80x80mm -
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing) -
Packaging Dimensions
1200 x 800 x 620 mm -
Packaging Content
1 x G893-ZX1-AAX4
2 x CPU heatsinks
1 x L-shape Rail kit
