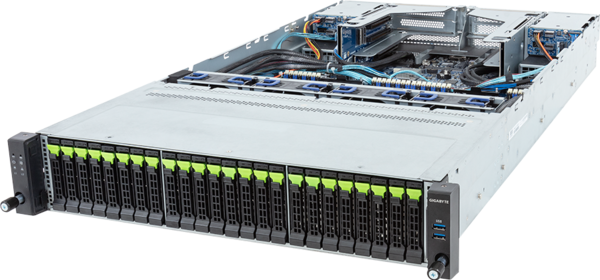

GIGABYTE R283-S92-AAJ1
Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 24+4-Bay Gen4 NVMe/SATA/SAS (24 x NVMe) Titanium
- · Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- · Dual Intel® Xeon® CPU Max Series
- · 8-Channel DDR5 RDIMM, 32 x DIMMs
- · Dual ROM Architecture
- · 2 x 1Gb/s LAN ports via Intel® I350-AM2
- · 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays
- · 12 x 2.5" Gen4 NVMe hot-swap bays
- · 4 x 2.5" SATA/SAS hot-swap bays on the rear side
- · 4 x FHHL PCIe Gen5 x16 slots
- · Compatible with SupremeRAID™ by Graid Technology
- · 1+1 2000W 80 PLUS Titanium redundant power supplies
Accelerating Artificial Intelligence and Leading Efficiency
Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
Redefine Performance with 4th/5th Gen Intel® Xeon® Scalable Processors and Intel® Xeon® CPU Max Series
-
Accelerators
built-in*Increase ROI while improving efficiency and performance
-
Up to 64
coresMore tasks can be done simultaneously and faster with dedicated cores
-
DDR5
supportIncreased memory frequency and throughput with DDR5 RDIMM support
-
64GB

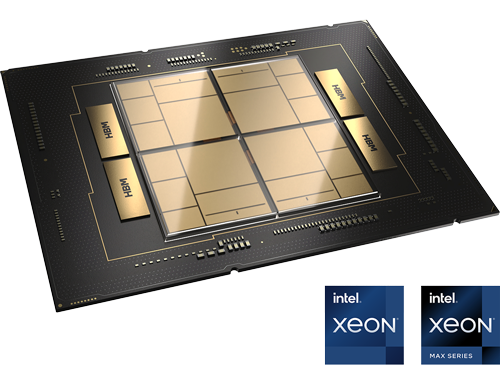

HBM**High bandwidth in-package memory massively speeds up data-intensive workloads
-
PCIe 5.0
lanesIncreased I/O throughput achieving 128GB/s bandwidth with support for the latest drives and accelerators
-
CXL 1.1
supportImprove performance via memory coherency and direct accelerator memory access
- * Different on-chip accelerators are supported depending on CPU SKUs and requires one-time activation. Please visit Intel's official website or contact technical support for details.
- ** HBM is an Intel Xeon CPU Max Series only feature. Please check the server specifications for more information on support for the Intel Xeon CPU Max Series.
Select GIGABYTE for the latest Gen Intel® Xeon® Platform
-
High CPU Performance
The best in computational performance relies on a system well designed by our engineers to adequately dissipate heat to achieve peak performance.
-
Energy Efficiency
Our engineers have baked in features to achieve higher efficiency from power supplies and server fans. Along with Titanium and Platinum offerings.
-
Optimal Price
GIGABYTE releases multiple product models and configurations to target exactly what users want without paying for extra features that go unused.
-
Ease of Administration
GIGABYTE servers come with GIGABYTE Management Console for server management. Using a web based browser remotely is key to easing management.
-
Continuous Operation
Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance.

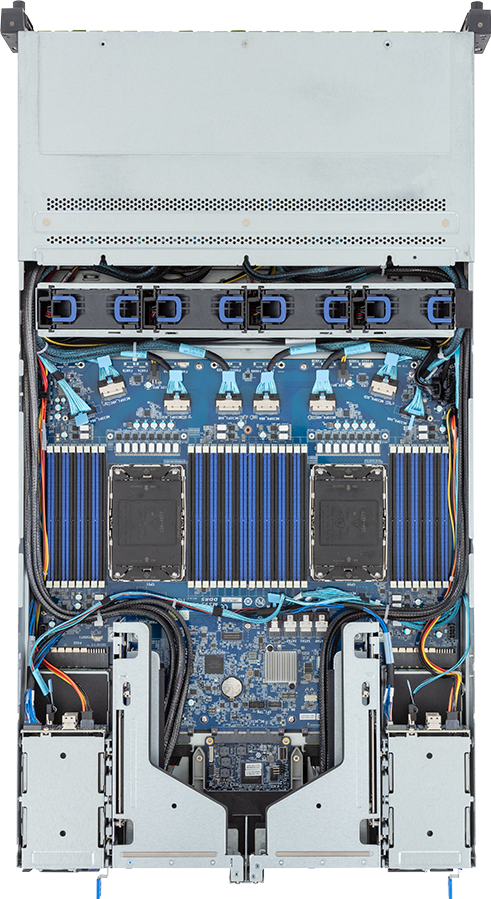

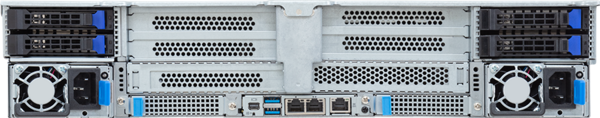

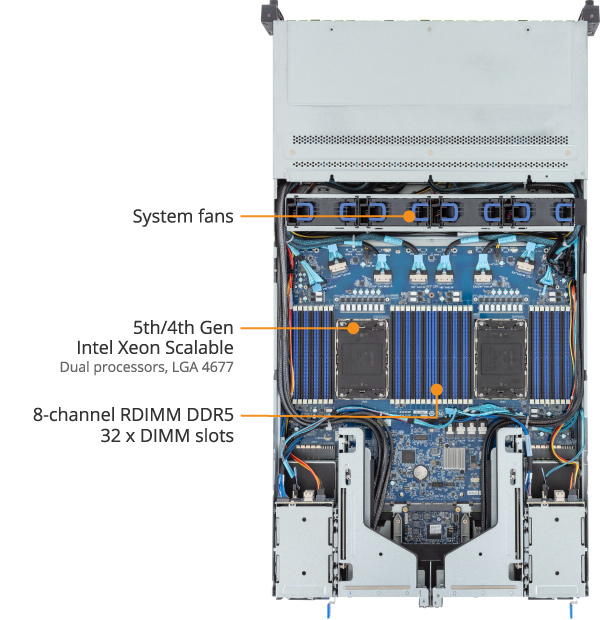

R283-S92-AAJ1 Product Overview
R283-S92-AAJ1 Block Diagram

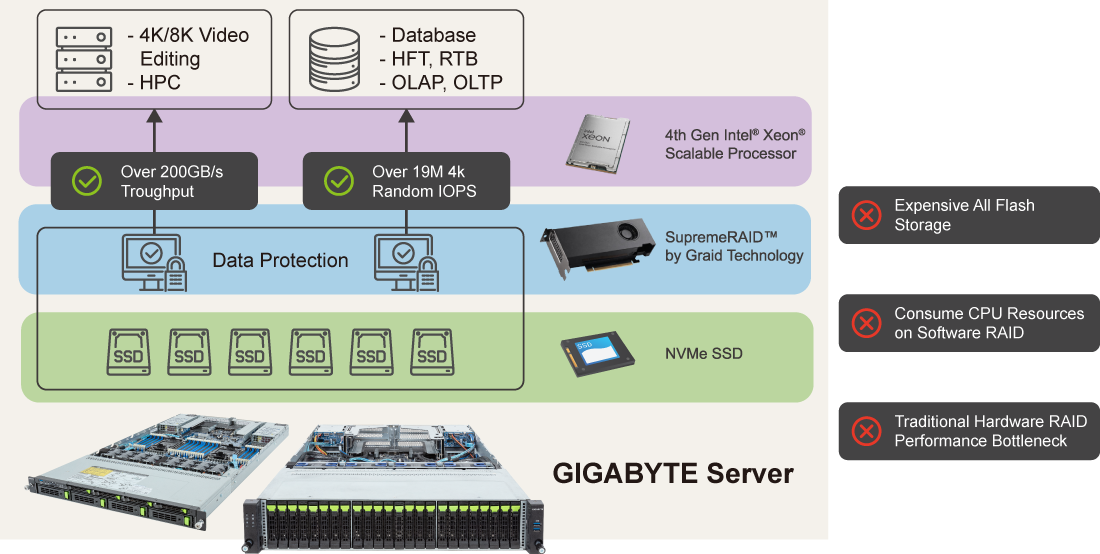

GIGABYTE Server and SupremeRAID™ by Graid Technology
Solutions that deliver 100% NVMe SSD performance without sacrificing data security
While traditional RAID technology has become the bottleneck of SSD disks, Graid Technology has developed a disruptive software + hardware solution to unlock the performance bottleneck of RAID protection for SSDs. SupremeRAID™ by Graid Technology works by installing a virtual NVMe controller onto the operating system and integrating a PCIe device into the system equipped with a high-performance AI processor to handle all RAID operations of the virtual NVMe controller.
This setup offers many advantages:
- ✔Takes full advantage of NVMe performance – 19 million random IOPS and 200 GiB/s throughput which is currently the industry leading performance benchmark
- ✔Unlike traditional Software RAID it does not consume a large amount of CPU resources
- ✔Overcomes the limitations of Hardware RAID cards, such as computing performance, PCIe bandwidth, number of SSD support and the effort of battery maintenance etc
- ✔Plug and play, and can be used even for systems without PCIe switches that used SSDs directly connected to the CPU via PCIe without needing to change the hardware design
- ✔SCI (Software Composable Infrastructure) compatible and can be used for external SSDs connected via NVMeOF
- ✔Highly scalable, and new software functions such as compression and encryption can easily be added
-
Power Efficiency

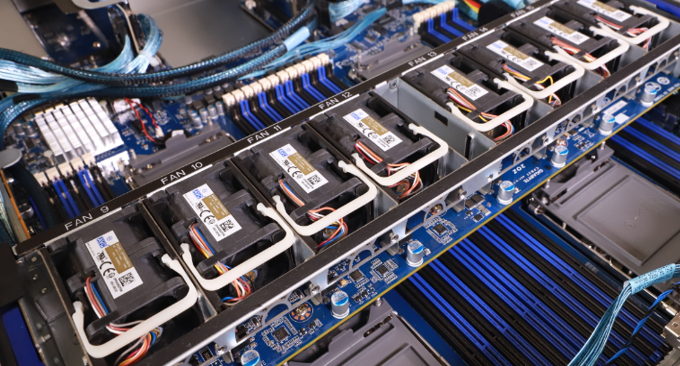

Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
-

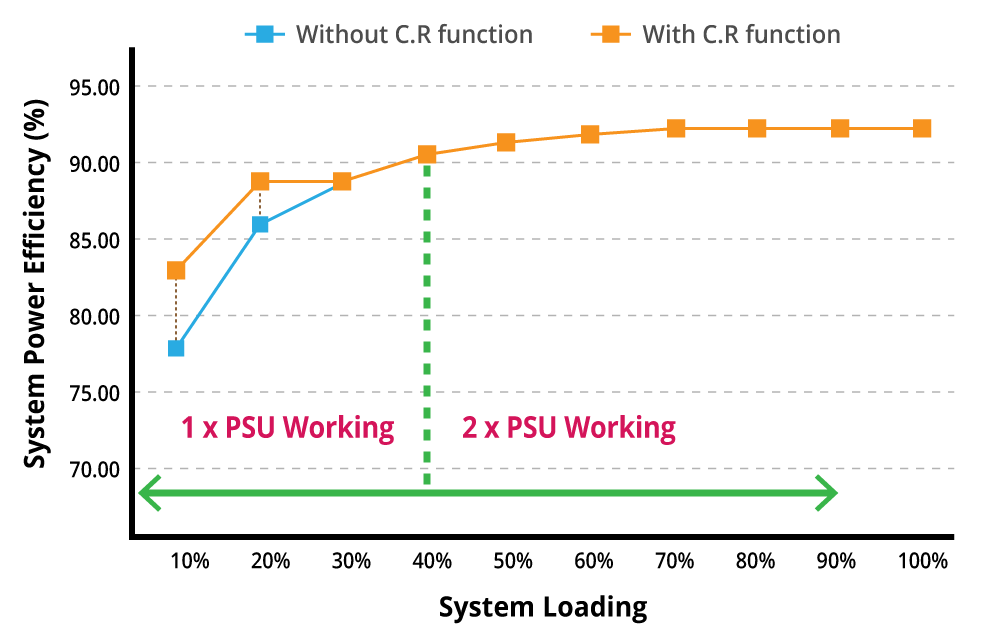

Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
-
High Availability
Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
-
Smart Crises Management and Protection (SCMP)
SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.
-
Dual ROM Architecture
If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.
-
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
-
User Friendly

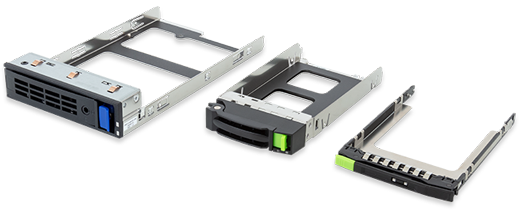

Tool-less Drive Bays Design
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
-

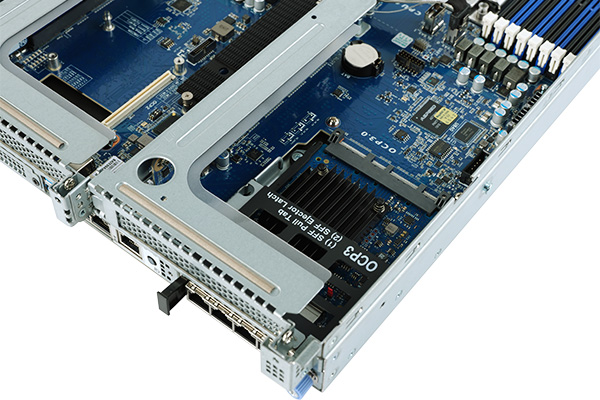

OCP 3.0 Ready
GIGABYTE offers servers that feature an onboard OCP 3.0 slot for the next generation of add on cards. Advantages of this new type include:
-
✔Easy Serviceability:
Simply slot in or pull out the card, without opening the server or using tools
-
✔Improved thermal design:
Horizontal position and optimal heat sink design allow for air cooling to eliminate the heat efficiently
-
-
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

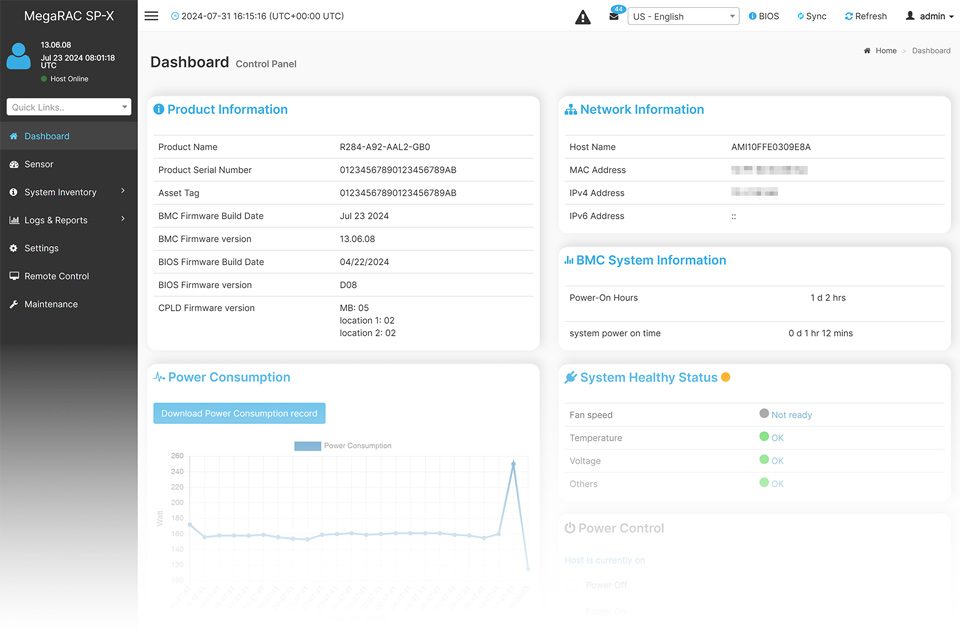

GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- ✔Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- ✔Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- ✔Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

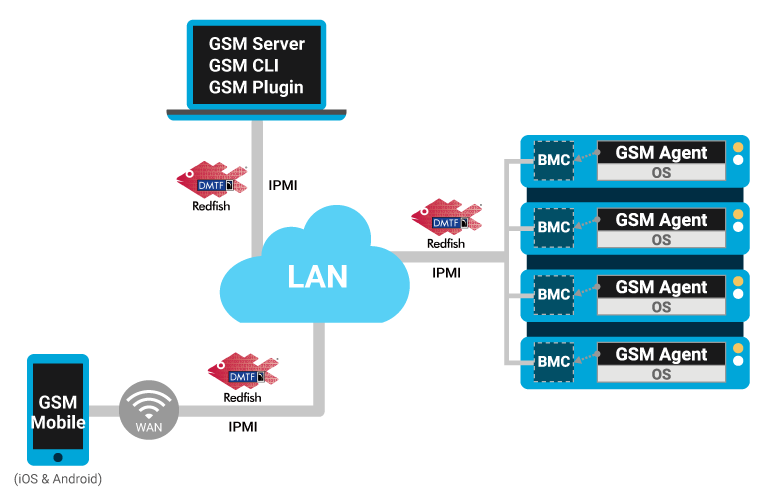

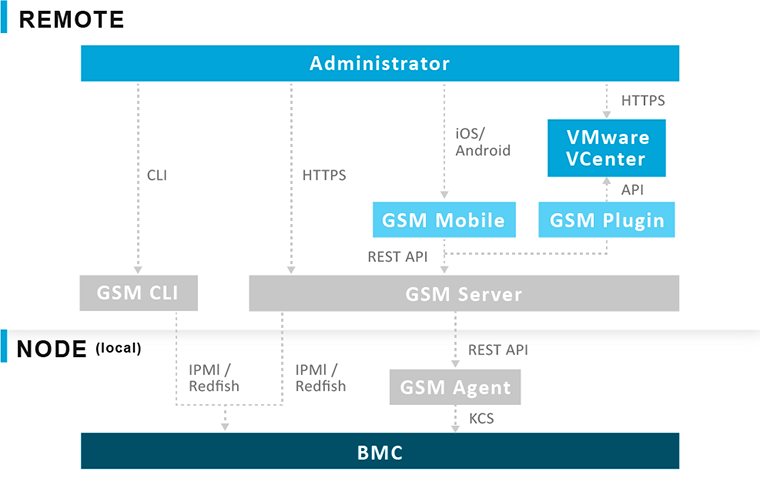

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- ✔GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- ✔GSM CLI: A command-line interface for monitoring and managing remotely.
- ✔GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- ✔GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- ✔GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
- [#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
- [#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
- [#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
- [#4] All trademarks and logos are the property of their respective owners.
Specifications
-
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 815 -
Motherboard
MS93-FS0 -
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. -
Socket
2 x LGA 4677
Socket E -
Chipset
Intel® C741 -
Memory
32 x DIMM slots
DDR5 memory supported
8-Channel memory per processor
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) -
LAN
Rear (G-SCM board - CDCR112):
x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN -
Video
Integrated in ASPEED® AST2600
- 1 x Mini-DP -
Storage
Front hot-swap:
12 x 2.5" Gen4 NVMe/SATA/SAS[1]
12 x 2.5" Gen4 NVMe
- (12 x NVMe from CPU_0, 12 x NVMe from CPU_1)
Rear hot-swap:
4 x 2.5" SATA/SAS[1][1] SAS card is required to support SAS drives. -
SAS
Require SAS add-in cards -
RAID
Intel® SATA RAID 0/1/10/5
Onboard VROC key header
Optional compatible RAID Cards:
NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1000-ED12, SR-1000-FD32, SR-1010-FD32
Support RAID 0/1/5/6/10
-
PCIe Expansion Slots
Riser Card CRS101J:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS101K:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
Riser Card CRS202G:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS202H:
- 1 x FHHL x16 (Gen5 x16), from CPU_1 -
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED -
Rear I/O
G-SCM board - CDCR112:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED -
Backplane Board
Speed and bandwidth:
Front side - CBP20O7: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s -
Security Modules
1 x TPM header with SPI interface
- OptionalTPM2.0 kit: CTM010 -
Power Supply [#1]
1+1 2000W 80 PLUS Titanium redundant power supplies
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
-
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings -
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
VMware ESXi 8.0 (for 4400/3400 series)
VMware ESXi 8.0 (for 6400/5400 series)
VMware ESXi 8.0 (for 8400 series)
VMware ESXi 8.0 (for 4500/3500 series)
VMware ESXi 8.0 (for 4500/3500 series)
VMware ESXi 8.0 (for 6500/5500 series)
VMware ESXi 8.0 (for 8500 series)
Windows Server 2022
Windows Server 2025 -
System Fans
4 x 80x80x38mm (18,300rpm) -
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) -
Weight
Net Weight: 31.8 kg
Gross Weight: 36.8 kg -
Packaging Dimensions
1082 x 685 x 314 mm -
Packaging Content
1 x R283-S92-AAJ1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit -
Part Numbers
- Barebone package (5th/4th Gen): 6NR283S92DR000ABJ1*
- Barebone package (4th Gen): 6NR283S92DR000AAJ1*
- Motherboard: 9AS93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-323208-A0R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20O7: 9CBP20O7NR-00*
- Backplane board - CBP2022: 9CBP2022NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101J: 9CRS101JNR-00*
- Riser card - CRS101K: 9CRS101KNR-00*
- Riser card - CRS202G: 9CRS202GNR-00*
- Riser card - CRS202H: 9CRS202HNR-00*
- G-SCM board - CDCR112: 9CDCR112NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-22000J-G1S
Optional parts:
- RAID card (SR-1000-ED12): 25FC1-SR1000-AFS
- RAID card (SR-1000-FD32): 25FC1-SRBUN0-AFS
- RAID card (SR-1010-ED32): 25FC1-SRBUN4-AFR
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283S92SR-RMA-A100
